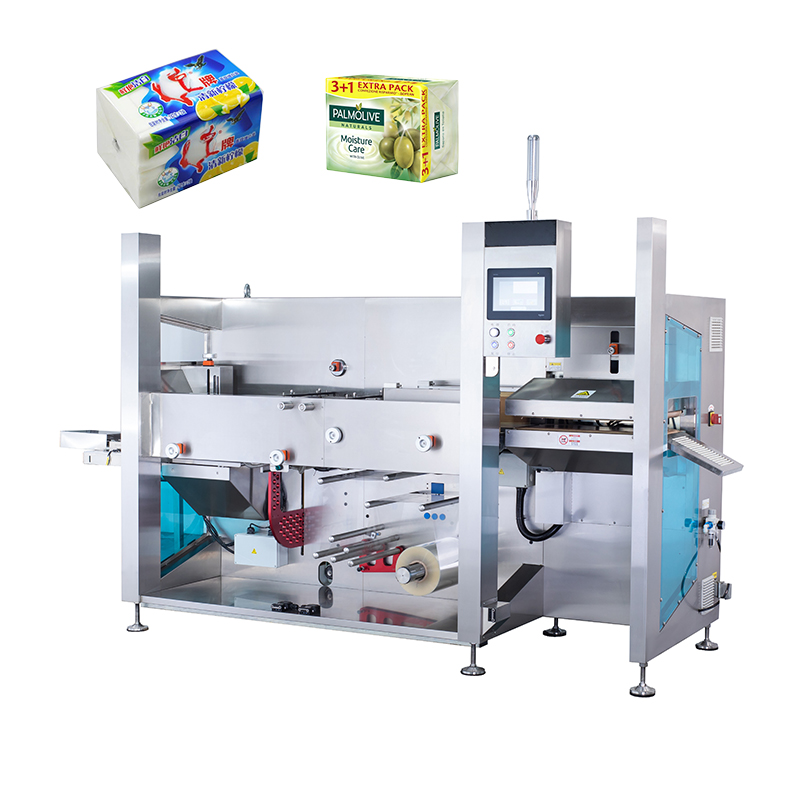

OW400S Full Servo High Speed Soap Overwrapper(bottom sealing)

The StingPack™ 400S Series fully servo high-speed 3D transparent film packaging machine is suitable for single or multiple box arrangement and palletizing packaging in industries such as food, medicine, cosmetics, and daily necessities. Its characteristic is a balcony structure; The packaging speed can reach up to 300 boxes/minute or 60 packs/minute; Replacing molds is simple and fast; Exquisite appearance, high safety level, superior machine performance, easy operation and maintenance; Easy to clean; The whole machine has no exposed cables; The electrical appliance adopts motion controller and servo drive, 6-axis servo drive, and the brand is Siemens or Schneider high-end series

Model

400S

Speed

20-60 per minute*

Packaging Size

L: 60-300mm W: 40-150mm H: 35-100mm

Power

9kw

Compressed Air

0.4~0.8 Mpa

Air Consumption

20 L/min

Power Supply

380 V 50~60 Hz 3P

Drive System

Servo Drive(6 axis)

Noise Level

75 dB

Dimension

2600x1100x1800mm

Weight

1800kg

Applicable Material

Bopp / PVC

Film Width

Min.150mm; Max.400mm

Film Thickness

0.025-0.04mm

Paper Core Inner Diameter

75mm

Film Roll Outer Diameter

Max.250mm

Tear Wire Reel Length

Min.40 mm; Max. 95 mm

Tear Wire Reel Dia.

Max. 110 mm

Tear Wire Reel Core Dia.

Fixed 30 mm

*Maximum for this range, output speed depends on pack size. Other range, speeds and pack size capabilities are available.
